Logistics Automation Solutions
Logistics Automation Solution: Unmanned Forklift
Unmanned forklifts capable of handling a variety of scenarios
| series | T series | P series | SLIM series | R series | E series | Q series | |
|---|---|---|---|---|---|---|---|
| Model type | Ultra-compact slim pallet jack | Counterbalance (indoor)Counterbalance (indoor) | Compact Slim Pallet Jack | Rich | Counterbalance (indoor/outdoor) | tow tractor | |
| Carrier type | Nine Block Pallet | ||||||
| 3 Base Pallet | |||||||
| Perimeter Base Pallet | |||||||
| Stillage Cage/Multi-Layer Rack | |||||||
| Trailers(cart) | |||||||
| None-carrier Materials | |||||||
| Recommended Scenario | Indoor return work | ||||||
| Production line transport work | |||||||
| Indoor multi-level loading operation | |||||||
| Indoor rack work | |||||||
| Truck loading/unloading operations | |||||||
| Indoor towing work | |||||||

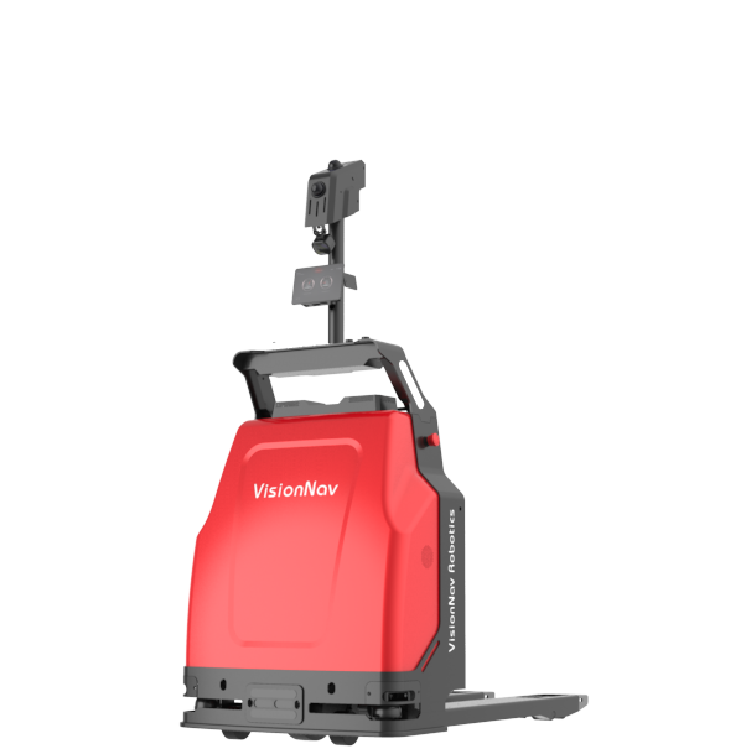

T series
VNST20(VL)-66 Ultra-Compact Slim Pallet Jack
This product implements navigation, detection, and safety functions with a single 3D lidar, reducing the distance between cargo and increasing inventory.
2000kg
Rated load
115mm
Fork impression height
1431mm
Minimum turning radius
2250mm
Minimum right-angled loading aisle width

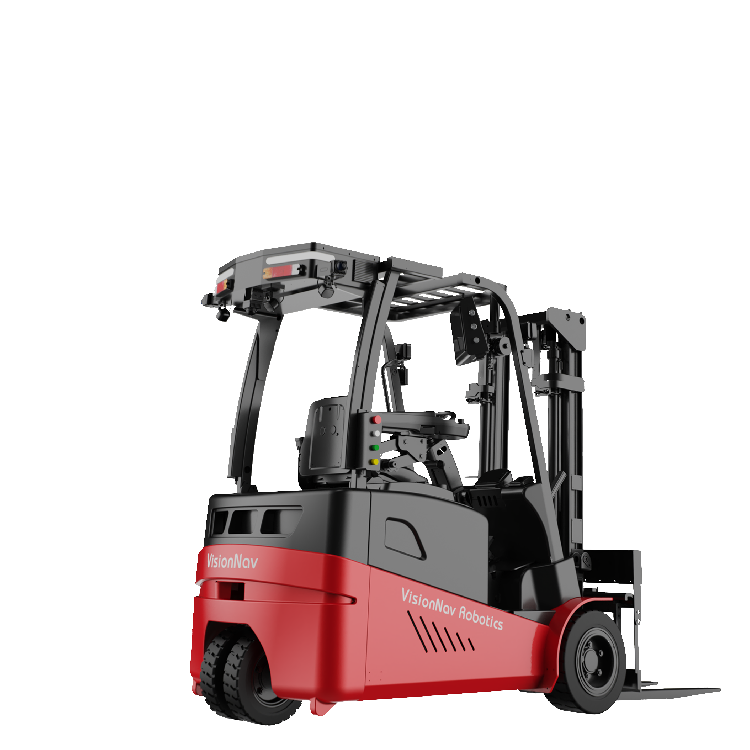

P series
VNP15(VL)-07 Counterbalance (Indoor)
This product is suitable for various work sites.
1500kg
Rated load
3000mm
Fork impression height
1423mm
Minimum turning radius
3100mm
Minimum right-angled loading aisle width
VNP20(VL)-07 Counterbalance (Indoor)
This product is suitable for various work sites.
1900kg
Rated load
3000mm
Fork impression height
1834mm
Minimum turning radius
3550mm
Minimum right-angled loading aisle width
VNP30(VL)-07 Counterbalance (Indoor)
This product can be used in a variety of work environments.
3000kg
Rated load
3000mm
Fork impression height
1940mm
Minimum turning radius
3800mm
Minimum right-angled loading aisle width

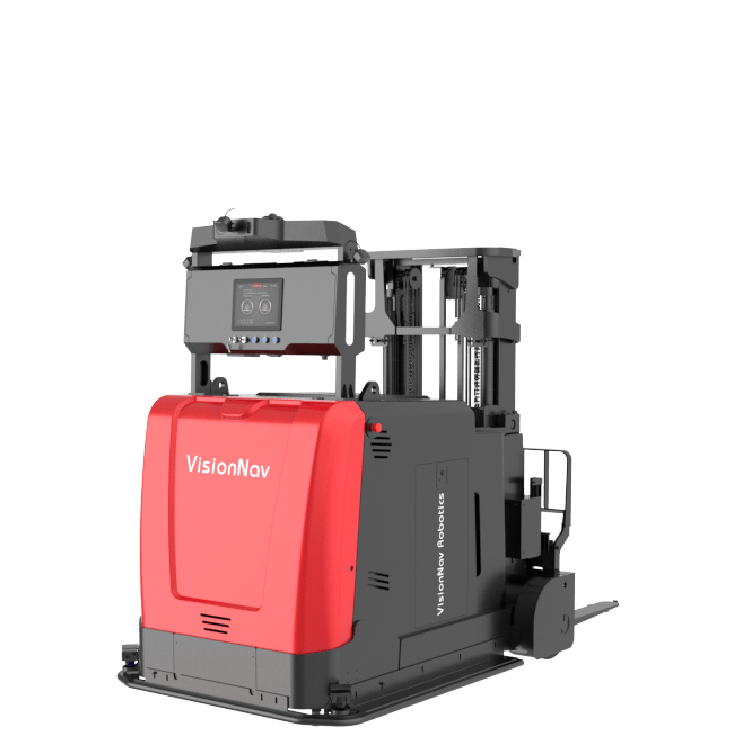

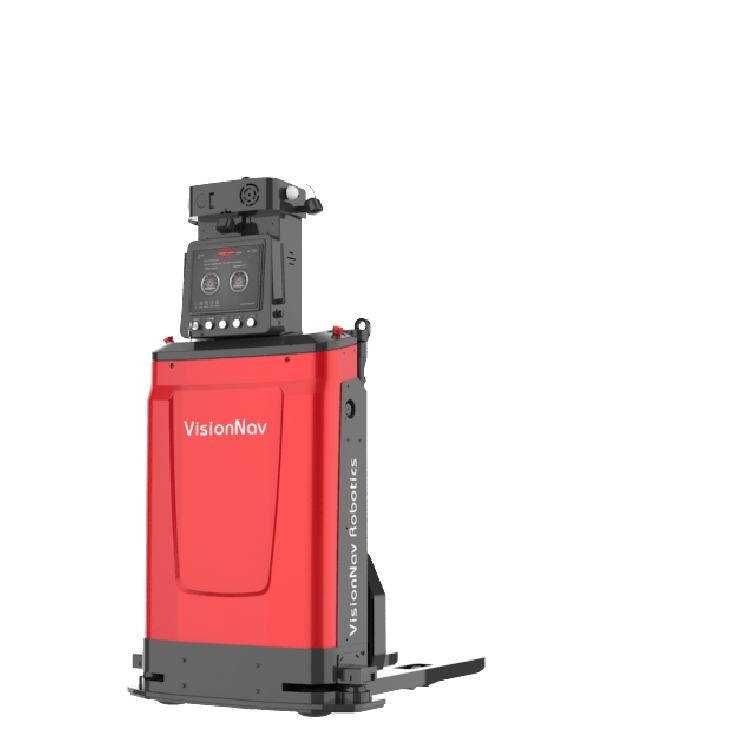

SLIM series
VNSL14(VL)-07 Slim Pallet Stacker
The best solution to improve loading efficiency with a loading aisle width of at least 2.2 m.
1400kg
Rated load
1600mm
Fork impression height
1256mm
Minimum turning radius
2250mm
Minimum right-angled loading aisle width

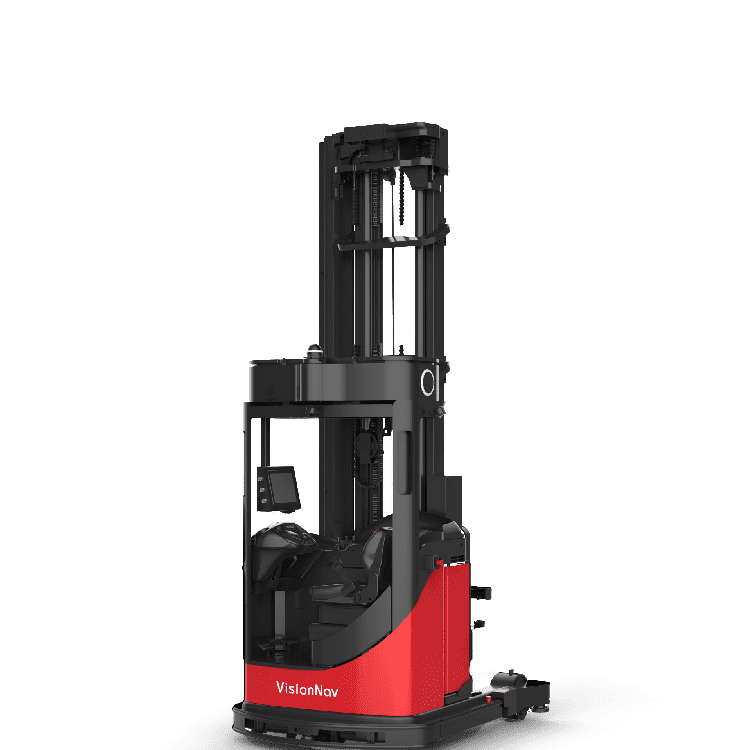

R series
VNRseries reach
The reach type is suitable for pallet racks, drive-in racks and automatic racks
2000kg
Maximum Rated load
7255mm
Maximum Fork impression height
1695mm
Minimum turning radius
3250mm
Minimum right-angled loading aisle width

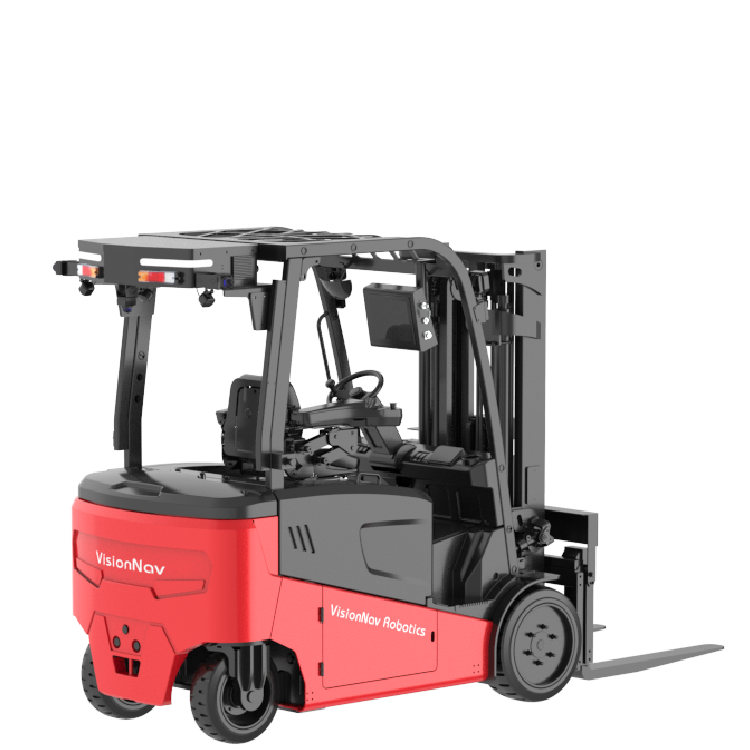

E series
VNE20（VL）-07 Counterbalance (Indoor/Outdoor)
This product can be used in both indoor and outdoor work environments thanks to its accurate positioning function using multi-navigation.
2000kg
Rated load
3000mm
Fork impression height
1835mm
Minimum turning radius
3550mm
Minimum right-angled loading aisle width
VNE Series Counterbalance (Indoor/Outdoor)
This product can be used in both indoor and outdoor work environments thanks to its accurate positioning function using multi-navigation.
4000kg
Maximum Rated load
3000mm
Maximum Fork impression height
2240mm
Minimum turning radius
4200mm
Minimum right-angled loading aisle width

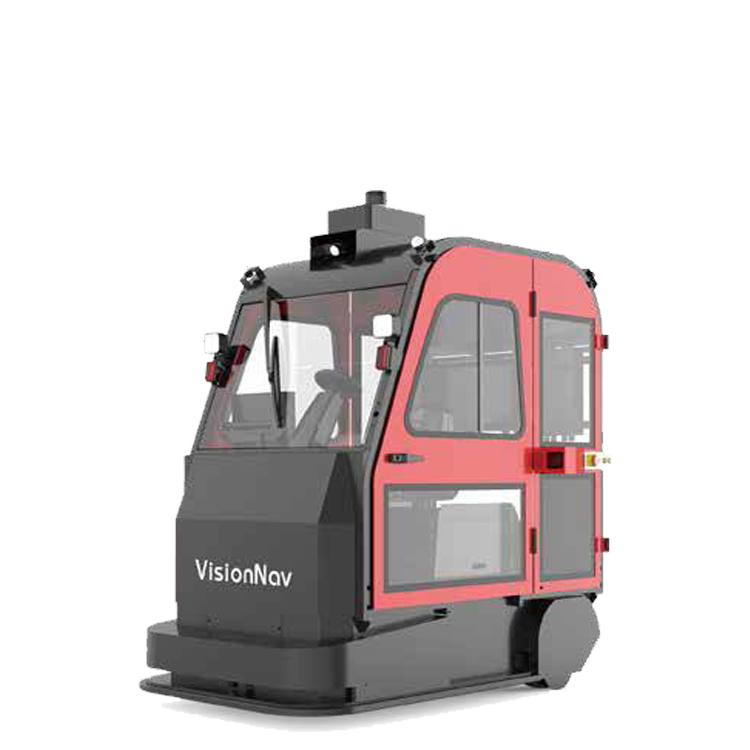

Q series
QSeries Tow Tractor
Suitable for indoor and outdoor transportation, long distances, and heavy load towing.
6000kg
Maximum Rated load
1206mm
wheelbase
1681mm
Minimum right-angled crossing aisle width
3D SLAM
Navigation method
